LOGAWA
Mini Hydro Power Plant
3.00 MW
The Logawa Mini Hydro Power Plant (MHPP) is a strategic asset managed by PT Sumarah Energi. This plant utilizes the flow of the Logawa River, located in Baseh Village, Kedung Banteng District, Banyumas Regency, Central Java Province. It is approximately 365 km by land from Jakarta, taking approximately 5 hours and 44 minutes.

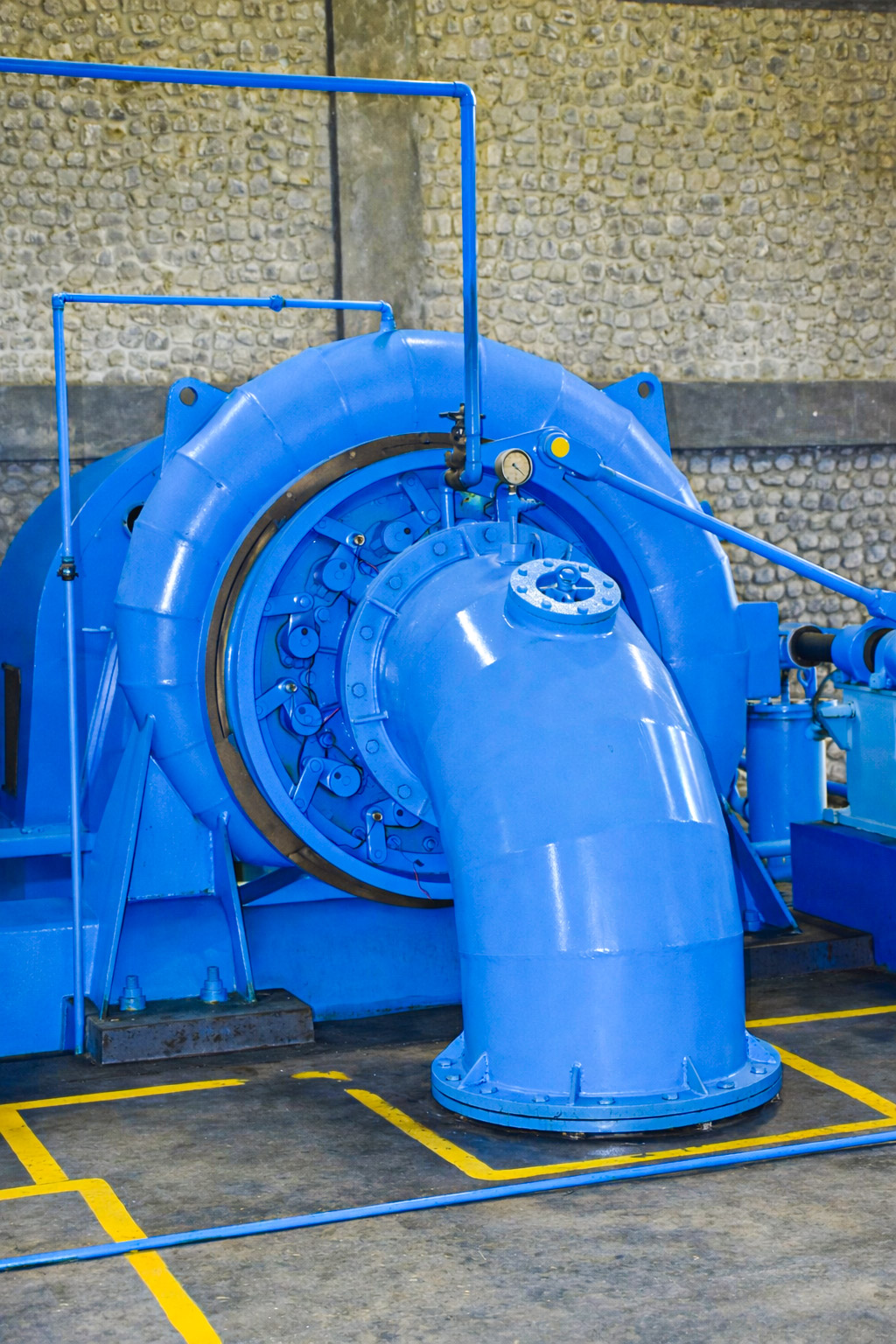

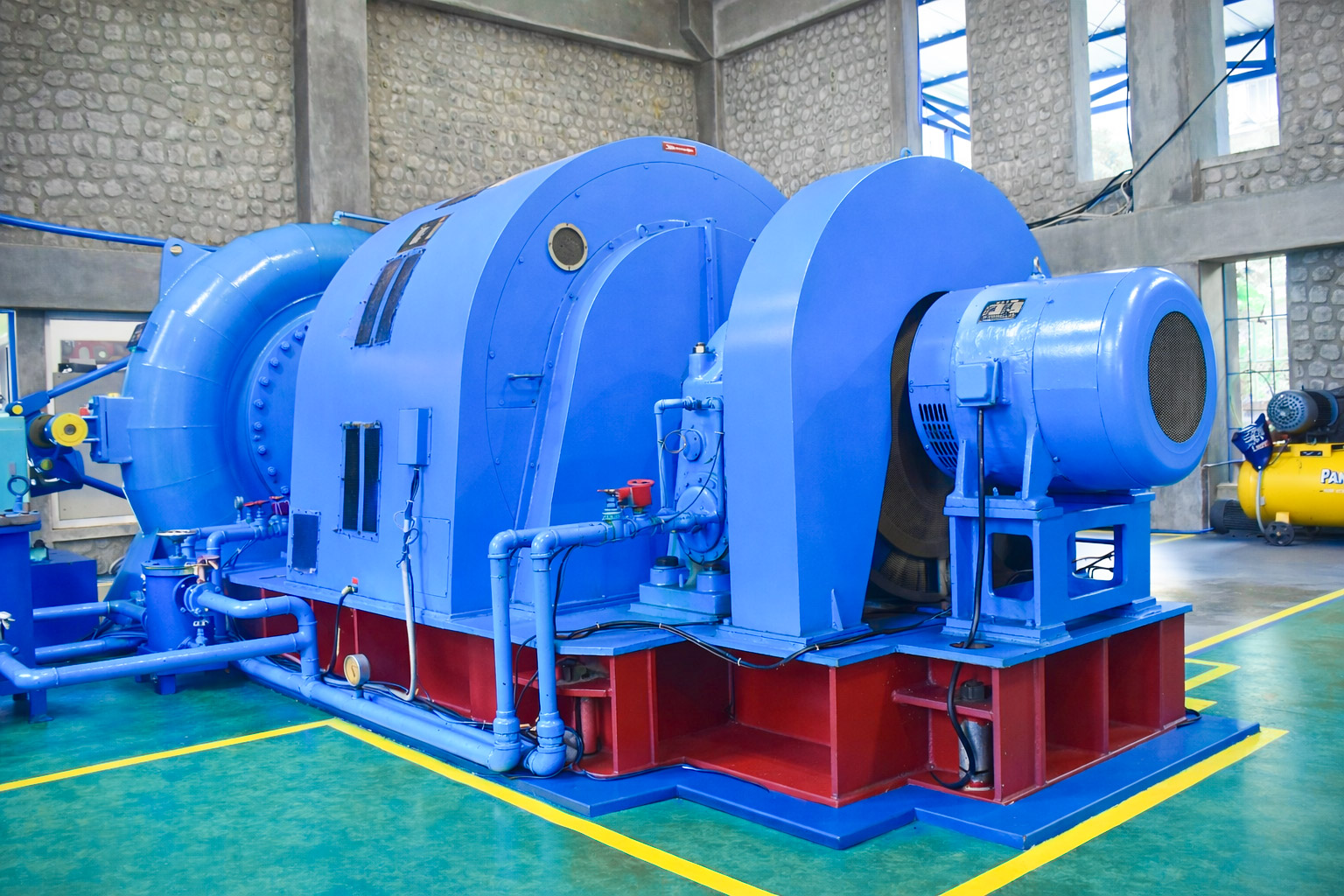

Technically, the Logawa MHPP has adequate specifications, with a head (waterfall) of 102 meters and a flow rate of 3.49 m³/s. Its supporting infrastructure includes a 306-meter-long penstock pipe with a diameter of 1.4 meters. To generate energy, the plant utilizes a horizontal Francis turbine combined with a horizontal synchronous generator.
The plant has a total capacity of 3.00 MW, consisting of two generating units of 1,500 kW each. The project has been commercial operation date (COD) since February 1, 2017, under a 20-year contract.
The presence of the Logawa Mini-Hydro Power Plant is concrete evidence of the private sector's contribution to strengthening national energy security through the utilization of environmentally friendly renewable energy resources.
